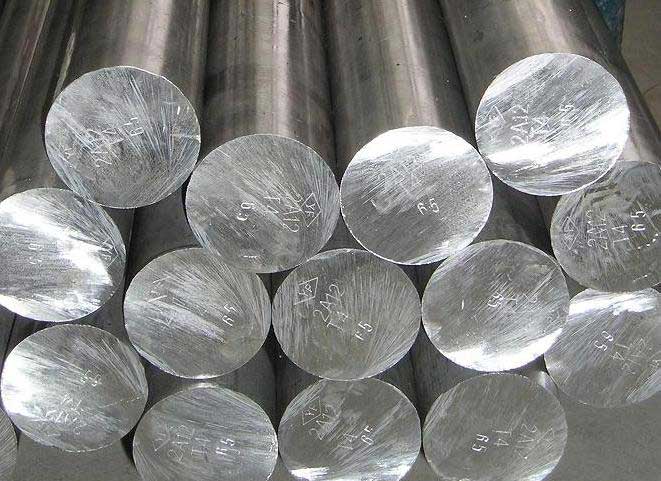

Aluminium Bar / Rod
Shape: round, square, rectangle, hexagonal
Extrusion rods and bars
Alloy: From 1*** to 7*** series; Temper: H112, F
Alloy: 1***, 3***, 5***, 8*** series Temper: O
Alloy: 2A11, 2A12, 2A13, 6061 Temper: T4
Alloy: 2***, 4***, 6***, 7*** series Temper: T6
Diameter (mm): 5-800
Standard available: GB/T3191-1998
Drawn rods and bars
Alloy: From 1*** series; Temper: O, F, H18
Alloy: 2*** series; Temper: O , F, T4, T6, T351, T651
Alloy: 3***, 5*** Series; Temper: O, F, H14, H18
Alloy: 6061, 7075 Temper: O, F, T6, T651
Alloy | Temper Available |
1060, 1100, 3003 | O, H112, F |
2014, | O, T4, T451, T42, T6, T651, T62, F, |
2024, | O, T3, T351, T42, T81, T851, F |
5052, 5083, 5086, 5454 | O, H111, H112, F |
6061, 6063, 6082 | O, T1, T4, T5, T6, T651 |
7075 | O, T6, T651, T7351, F |
For temper end with -51, -510- -511, like T351, T651, should make general inspection for the release of its inner stress.
For ultrasonic inspection, the method should according with MIL-2154, Marine method.
