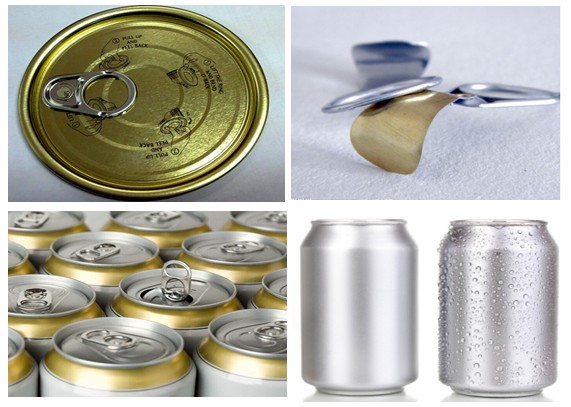

Aluminum coils for aluminum can body

Main alloy adopted: 3004 / 3104

Alloy Si Fe Cu Mn Mg Zn Ti Ga V Other Remainder
3004 0.3 0.7 0.25 1.0~1.5 0.8~1.3 0.25 0.15 Al
3104 0.6 0.8 0.05~0.25 0.8~1.4 0.8~1.3 0.25 0.10 0.05 0.05 0.15 Al

Special control: Fe + Mn≤1.85% to prevent 45oc earing.



Mechanism Properties:

Elongation: δ≥3%,

Earing: E≤4%

Tensile Strength: σb ≥275Mpa

Yield Strength: σ0.2≥270Mpa

Body Axis bearing strength: ≥1.35KN

Bottom bearing strength: ≥630Kpa

Thickness: 0.230~0.270 mm



Aluminum coils for aluminum end

Alloy type 5052   5182  H19  H48  H49
Thickness 0.208mm  0.216mm  0.224mm 0.249mm MAX thickness 0.3mm     (+/-0.003mm)
Width 20(min)-2000mm(max), as per request  (+1.5mm–0mm)
UTS (MPa) 330-365
TYS (MPa) 380-420
Coating PPG, Akzo, Valspar, inner coating is EPOXY of 12-13um, outside coating is EPOXY of 4-5um.
Roughness 35-50um
Standard EN 541 and EN 573-3
Coil weight 2500kgs-3500kgs per Roller
Surface Be processed by the Electrostatic spray wax

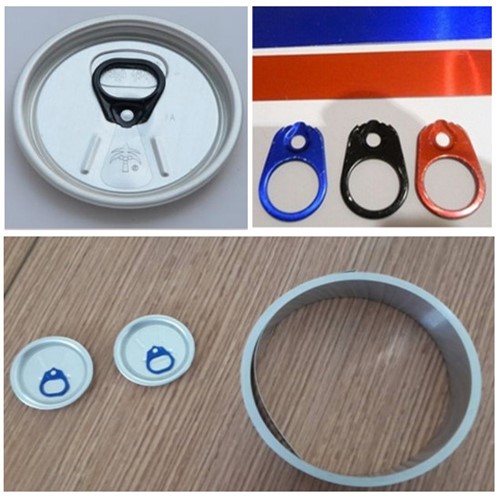

Aluminum coils for Ring-Pull

Alloy type 5182   H19  H48  H49
Thickness 0.279mm  0.287mm  0.292mm MAX 0.45mm    (+/-0.003mm)
Width 20(min)-2000mm(max), as per request  (+1.5mm–0mm)
UTS (MPa) 330-365
TYS (MPa) 380-420
Coating PPG, Akzo, Valspar
Standard EN 541 and EN 573-3
Coil weight 2500kgs-3500kgs per Roller



Squareness of sheet: Maximum squareness is 0,08% of length of the sheet.

Flatness: The tolerance on flatness of the sheet is maximum 2 mm (height of wave).

Lateral bow: The tolerance on lateral bow is max. 0,1%, (which means 1mm on a fixed sheet length of 1000mm).

Grain size: The grain size, measured according ASTM E112-85, must be ≤100 µm.

Surface quality: Material is chromium-phosphate conversion coated and DOS re-oiled.

Food contact: Aluminium alloys, conversion coating and DOS oil are approved for food contact according to current legislations. (European regulation 94/62/CEE, CONEG, FDA)



We are the earliest enterprise that can provide high level can-stock materials for pop-top can-body, can-stock and can-lid in aluminium in China, which is the core supplier for the package in aluminium. We adopt Japan original painting machine and PPG coating that is exclusively used for tank cap, and professionally produces the coated aluminium coils used for making ring-pull and lid of pop can. All the products are tested by the special instrument, and have passed the FDA recognition of the US.
